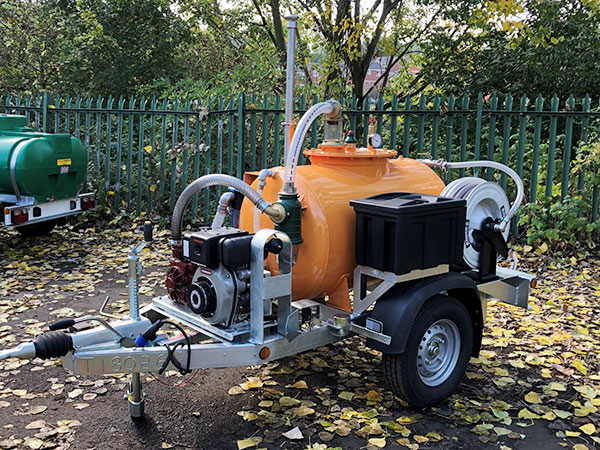

1000/300 Litre Single Axle Site Tow Vacuum Tank

Tank: Constructed from 5mm mild steel galvanized, complete with dished ends. 1000 litre dirty: 18” bolt on access man lid in top of tank, contents sight glass, 2” inlet c/w 15m of tiger tail suction hose stored on brackets around tank, 3” outlet in bottom of tank for emptying. 300 litres clean: 2” fill point, contents sight glass, ¾ inch outlet at base of tank and 1 inch drain down valve. Safety features: Pressure relief valve, vacuum relief valve, pressure gauge, primary overfill protection, secondary overfill protection. Equipment: Yanmar diesel electric start engine powering a mec2000 vacuum pump via twin belts c/w guard. Pump can vacuum the tank to fill via 2” inlet and pressurise the tank to empty via the 3” discharge valve in base of tank. Yanmar diesel electric start 3000psi pressure washer. Chassis: Tank mounted on a single axle site tow chassis galvanized c/w flotation wheels and tyres.
