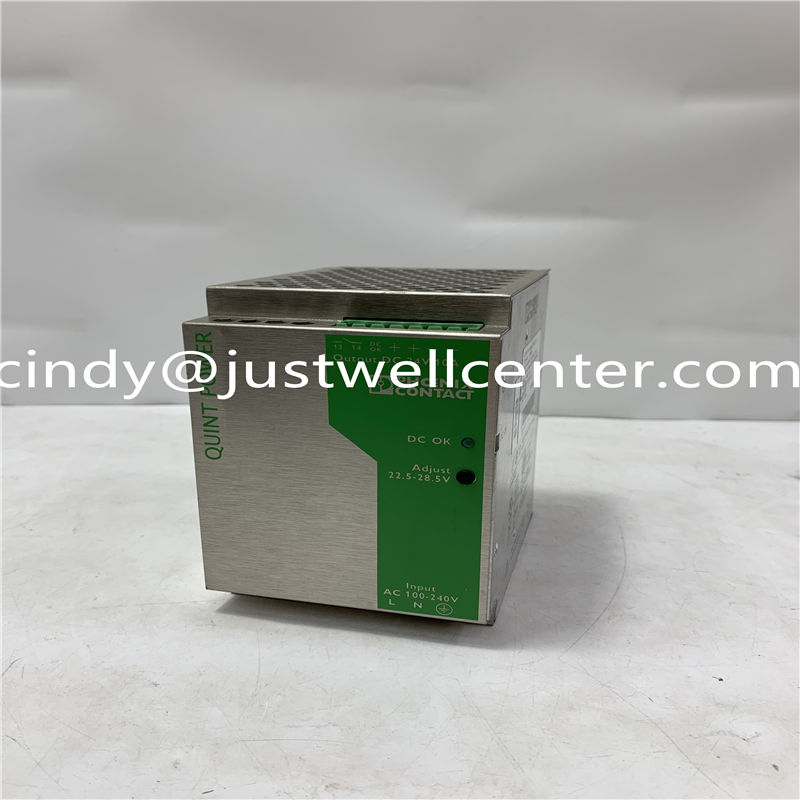

QUINT-PS-100-240AC/24DC/10 PHOENIX DIN rail power supply

Description QUINT-PS-100-240AC/24DC/10 PHOENIX DIN rail power supply Product Dimensions： The QUINT-PS-100-240AC/24DC/10 is a robust and reliable single-phase DIN rail power supply unit from Phoenix Contact’s QUINT POWER series. It is designed to provide a stable and dependable 24 V DC output with a current of 10 A, delivering a power of 240 W. This power supply is characterized by its high efficiency, compact design, and features for ensuring system availability. Product Parameters: Input Voltage Range: 85 V AC … 264 V AC, 90 V DC … 350 V DC Nominal Input Voltage: 100 V AC … 240 V AC AC Frequency Range: 45 Hz … 65 Hz Nominal Output Voltage: 24 V DC ±1 % Adjustable Output Voltage Range (USet): 22.5 V DC … 28.5 V DC Nominal Output Current (IN): 10 A (up to 60 °C) Power Boost (IBoost): 15 A Output Power: 240 W Efficiency: > 91 % Mains Buffering Time: > 40 ms (at 120 V AC and 230 V AC) Operating Temperature Range: -25 °C … 70 °C (with derating above 60 °C) Degree of Protection: IP20 Dimensions (W x H x D): 85 mm x 130 mm x 125 mm Weight: 1.3 kg Mounting: DIN rail NS 35 Product Advantages: Reliable Power Supply: Provides a stable and regulated 24 V DC output for demanding applications. Power Boost: The integrated Power Boost provides up to 1.5 times the nominal current, enabling reliable starting of loads with high inrush currents and selective tripping of standard circuit breakers. Preventive Function Monitoring: Continuously monitors the output voltage and current, signaling critical operating states to the control unit before a fault occurs, minimizing downtime. High Efficiency: With an efficiency of over 91%, it minimizes power loss and reduces heat generation, contributing to a longer service life. Wide Input Voltage Range: The wide input voltage range allows for global use and compensates for voltage fluctuations. Compact Design: The slim design saves space in the control cabinet. Easy Installation: Simple and fast installation on standard DIN rails. Parallel Operation: Can be connected in parallel for redundancy and increased power. Robust Design: Designed for industrial environments with a wide operating temperature range and vibration/shock resistance. Long Service Life: High MTBF (Mean Time Between Failures) of > 500,000 hours ensures a long and reliable operational lifespan.   Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： PHOENIX UMK-SE PHOENIX 947-7 PHOENIX MCR-DAC12/U-10/MSTB PHOENIX QUINT-PS-100-240VAC PHOENIX QUINT-BUFFER-24DC/20 PHOENIX QUINT-PS-100-240AC/10 PHOENIX QUINT-PS-100-240AC/24DC/10 PHOENIX UMK-SE11.25-1 PHOENIX PLC-BSC-24DC/21 PHOENIX HDFK4 PHOENIX UK3N PHOENIX UK4-T PHOENIX UK6N PHOENIX ST6 PHOENIX MINI-PS-12-24DC/24DC/1 PHOENIX ILC-150-ETH PHOENIX 2751687 PHOENIX 2752000 PHOENIX 90-PS-120AC/2X15DC/1 PHOENIX CM125-PS-120-230AC/24DC/5/F PHOENIX CONTCAT IBS PCI SC/I-T PHOENIX CPU-IB IL332-128-PAC PHOENIX D-32825 PHOENIX E/UK PHOENIX EMG10-REL/KSR-G24/21-LC PHOENIX FL SWITCH MM HS PHOENIX IB IL 24 DI 16 PHOENIX IB IL 24 DO 16 PHOENIX IB IL AI 2/SF PHOENIX IB IL AO 2/U/BP PHOENIX IB STME 24 AI 4/SF PHOENIX IB-IL-RS-485/422-PAC PHOENIX IBS 24 BK-T PHOENIX IBS 24BK/LC2 PHOENIX IBS 24DI/32 PHOENIX IBS 24DO/32 PHOENIX IBS PCI SC/I-T PHOENIX IBS S5 DAB PHOENIX IBS S5 DSC/I-T PHOENIX IBS24 BK-T(2780797) PHOENIX INTERBUS IBS S5 DAB PHOENIX MCR-PS-24DC-10DC PHOENIX MCR-R/I-4-V-DC PHOENIX OTTA 6-T PHOENIX PI-EX-ME-RPS-I/I PHOENIX PLC-RSC-24DC/21 PHOENIX PSR-URM4/5X1-B PHOENIX QUINT-DC-UPS/24DC/10 PHOENIX QUINT-PS/1AC/24DC/10 PHOENIX QUINT-PS/1AC/24DC/20 PHOENIX QUINT-PS-100-240AC/24DC/110 PHOENIX QUINT-PS-100-240AC/24DC/20 PHOENIX QUINT-PS-100-240VAC/24VDC/20 PHOENIX QUINT-PS-3*400-500AC PHOENIX STEP-PS/1AC/24DC/2.5 PHOENIX ST-SI-UK4 PHOENIX SUBCON-PLUS-PROFIB/PG/SC2 PHOENIX SUBCON-PLUS-PROFIB/SC2 PHOENIX UK 2.5 B PHOENIX UM72-R-230UC/21-21/S046 PHOENIX UT 4-HE SI PHOENIX UT 4-MTD PHOENIX UT 6-HE SI PHOENIX OCM-DPR-85-D-ST PHOENIX QUINT PS-100-240AC/24DC/10 PHOENIX FLMC10BASE-T/FO G850 PHOENIX IBS 24BK-I/O-T PHOENIX FLKM50-PA-AB/1756 PHOENIX 2961192 PHOENIX OPC5315-004-AB PHOENIX IB ST 24 AI 4/SF-2754309 PHOENIX IB ST ZF 24 AI 4/SF-2750620 PHOENIX EZ-DR PHOENIX UT 4-TG PHOENIX ILB BT ADIO MUX-OMNI PHOENIX PT-BE/FM PHOENIX ST 1.5-TWIN PHOENIX ST 2.5-TWIN PHOENIX ST 4-TWIN PHOENIX OCM-DPR-85-P-D-ST-ACV PHOENIX FL-SWITCH-MCS-14TX/2FX PHOENIX OCM-ETH-85-D-ST-A1-EXT PHOENIX IBS-IP-ODP2 PHOENIX OCX-CTN-13-R-D-ST-ACV PHOENIX OCX-CTN-85-R-D-ST-24V PHOENIX IBS-IP-500-PS-2-BS PHOENIX IBS-ISA-SC/486DX/I-T PHOENIX OPC5515-003-AB PHOENIX VME-3H-CB/I-T PHOENIX 0405-6300G1 PHOENIX OCM-DPR-13-D-ST PHOENIX OCX-CTN-13D-ST PHOENIX OCX-ETF-13-D-ST-2A1-SM-EXT PHOENIX PPC-5315-S PHOENIX PPC5315 PHOENIX PLC-BSC-24DC/21 NO.#2961105 PHOENIX PLC-BSC-24DC/21 NO.#2961192
