QUINT-PS-100-240AC/24DC/20A PHOENIX power supply

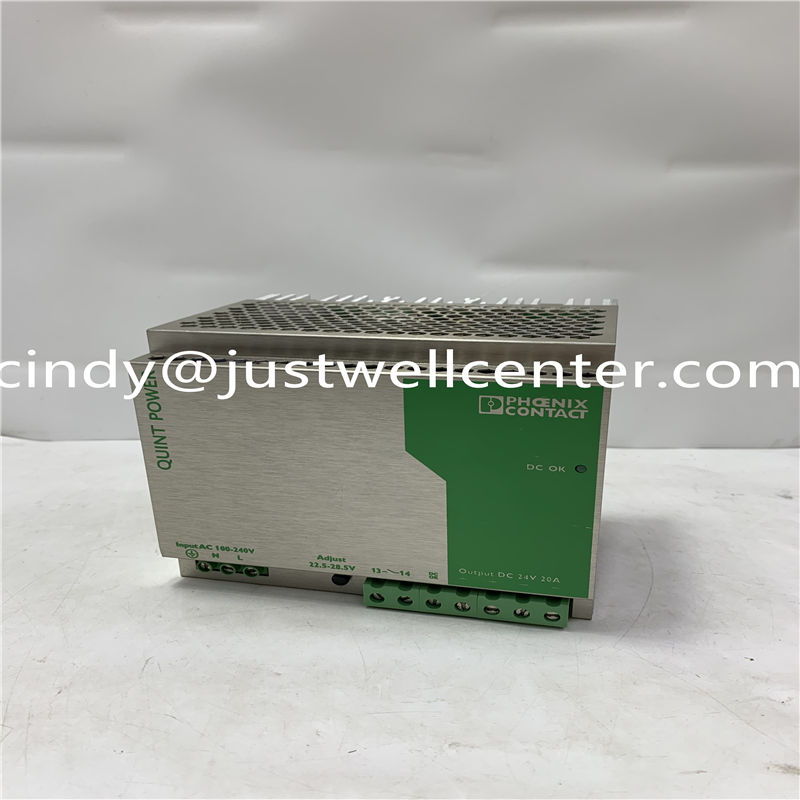

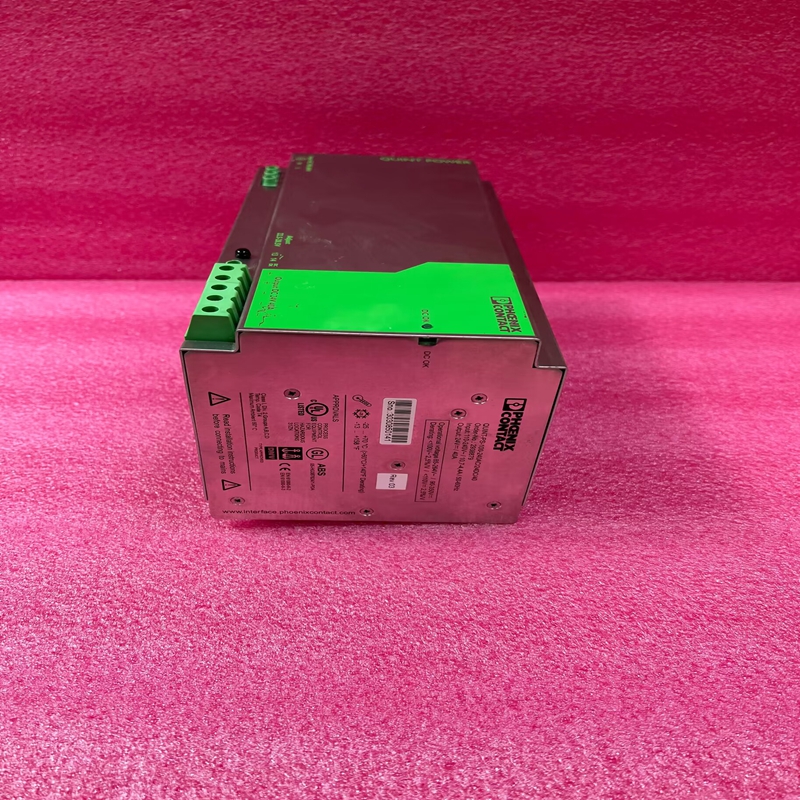

Description QUINT-PS-100-240AC/24DC/20A PHOENIX power supply Product Dimensions： The QUINT-PS-100-240AC/24DC/20A is a robust and reliable single-phase primary-switched power supply from Phoenix Contact’s QUINT POWER series. It is designed to provide a stable and dependable 24 V DC output with a current of 20 A, making it suitable for a wide range of industrial applications. This power supply unit features a wide input voltage range of 100-240 V AC, allowing for global use. Its enclosed design and DIN rail mounting facilitate easy integration into control cabinets. Product Parameters Here are the key technical specifications of the QUINT-PS-100-240AC/24DC/20A: Parameter Value Input Nominal Input Voltage Range 100 – 240 V AC Input Voltage Range 85 – 264 V AC; 90 – 350 V DC Input Frequency Range 45 – 65 Hz Input Current Approx. 4.76 A (at 120 V AC), 2.3 A (at 230 V AC) Inrush Current < 15 A (typical) Output Nominal Output Voltage 24 V DC ± 1 % Adjustable Output Voltage Range 22.5 – 28.5 V DC Nominal Output Current 20 A (up to 60 °C) Power Boost (IBoost) 26 A Output Power 480 W Residual Ripple < 10 mV_PP (at nominal values) General Data Efficiency > 92 % Operating Temperature -25 °C to 70 °C (with derating above 60 °C) Mounting Type DIN Rail NS 35 Connection Technology Input/Output Screw connection Dimensions (W x H x D) 157 mm x 130 mm x 125 mm Weight 2.5 kg Protection Class I (with PE connection) Degree of Protection IP20 MTBF (IEC 61709, SN 29500) > 500,000 h Product Advantages The QUINT-PS-100-240AC/24DC/20A offers several key advantages: Reliable Power Supply: Generously dimensioned capacitors ensure mains buffering of more than 20 ms at full load, providing a stable output even during brief power interruptions. Power Boost: The integrated Power Boost provides up to 26 A of current, allowing for the reliable starting of loads with high inrush currents. Preventive Function Monitoring: It diagnoses impermissible operating states and reports them before errors occur, minimizing system downtime. High Efficiency: With an efficiency of over 92%, it minimizes power dissipation and reduces heat generation, leading to a longer service life. Wide Input Voltage Range: The 85-264 V AC input range allows for universal application worldwide. Compact Design: The slim design saves space in the control cabinet. Flexible Connection Technology: Offers screw connection for secure and easy wiring. Robust and Durable: Designed for industrial environments with a wide operating temperature range. Shipping Port: Xiamen, China Payment: Bank of Chicago, Bank of Singapore Express cooperation: fedex, DHL, UPS and your express account Service: Professional Sales provides 24 hours /7 days online service Please make an inquiry for more models： PHOENIX UMK-SE PHOENIX 947-7 PHOENIX MCR-DAC12/U-10/MSTB PHOENIX QUINT-PS-100-240VAC PHOENIX QUINT-BUFFER-24DC/20 PHOENIX QUINT-PS-100-240AC/10 PHOENIX QUINT-PS-100-240AC/24DC/10 PHOENIX UMK-SE11.25-1 PHOENIX PLC-BSC-24DC/21 PHOENIX HDFK4 PHOENIX UK3N PHOENIX UK4-T PHOENIX UK6N PHOENIX ST6 PHOENIX MINI-PS-12-24DC/24DC/1 PHOENIX ILC-150-ETH PHOENIX 2751687 PHOENIX 2752000 PHOENIX 90-PS-120AC/2X15DC/1 PHOENIX CM125-PS-120-230AC/24DC/5/F PHOENIX CONTCAT IBS PCI SC/I-T PHOENIX CPU-IB IL332-128-PAC PHOENIX D-32825 PHOENIX E/UK PHOENIX EMG10-REL/KSR-G24/21-LC PHOENIX FL SWITCH MM HS PHOENIX IB IL 24 DI 16 PHOENIX IB IL 24 DO 16 PHOENIX IB IL AI 2/SF PHOENIX IB IL AO 2/U/BP PHOENIX IB STME 24 AI 4/SF PHOENIX IB-IL-RS-485/422-PAC PHOENIX IBS 24 BK-T PHOENIX IBS 24BK/LC2 PHOENIX IBS 24DI/32 PHOENIX IBS 24DO/32 PHOENIX IBS PCI SC/I-T PHOENIX IBS S5 DAB PHOENIX IBS S5 DSC/I-T PHOENIX IBS24 BK-T(2780797) PHOENIX INTERBUS IBS S5 DAB PHOENIX MCR-PS-24DC-10DC PHOENIX MCR-R/I-4-V-DC PHOENIX OTTA 6-T PHOENIX PI-EX-ME-RPS-I/I PHOENIX PLC-RSC-24DC/21 PHOENIX PSR-URM4/5X1-B PHOENIX QUINT-DC-UPS/24DC/10 PHOENIX QUINT-PS/1AC/24DC/10 PHOENIX QUINT-PS/1AC/24DC/20 PHOENIX QUINT-PS-100-240AC/24DC/110 PHOENIX QUINT-PS-100-240AC/24DC/20 PHOENIX QUINT-PS-100-240VAC/24VDC/20 PHOENIX QUINT-PS-3*400-500AC PHOENIX STEP-PS/1AC/24DC/2.5 PHOENIX ST-SI-UK4 PHOENIX SUBCON-PLUS-PROFIB/PG/SC2 PHOENIX SUBCON-PLUS-PROFIB/SC2 PHOENIX UK 2.5 B PHOENIX UM72-R-230UC/21-21/S046 PHOENIX UT 4-HE SI PHOENIX UT 4-MTD PHOENIX UT 6-HE SI PHOENIX OCM-DPR-85-D-ST PHOENIX QUINT PS-100-240AC/24DC/10 PHOENIX FLMC10BASE-T/FO G850 PHOENIX IBS 24BK-I/O-T PHOENIX FLKM50-PA-AB/1756 PHOENIX 2961192 PHOENIX OPC5315-004-AB PHOENIX IB ST 24 AI 4/SF-2754309 PHOENIX IB ST ZF 24 AI 4/SF-2750620 PHOENIX EZ-DR PHOENIX UT 4-TG PHOENIX ILB BT ADIO MUX-OMNI PHOENIX PT-BE/FM PHOENIX ST 1.5-TWIN PHOENIX ST 2.5-TWIN PHOENIX ST 4-TWIN PHOENIX OCM-DPR-85-P-D-ST-ACV PHOENIX FL-SWITCH-MCS-14TX/2FX PHOENIX OCM-ETH-85-D-ST-A1-EXT PHOENIX IBS-IP-ODP2 PHOENIX OCX-CTN-13-R-D-ST-ACV PHOENIX OCX-CTN-85-R-D-ST-24V PHOENIX IBS-IP-500-PS-2-BS PHOENIX IBS-ISA-SC/486DX/I-T PHOENIX OPC5515-003-AB PHOENIX VME-3H-CB/I-T PHOENIX 0405-6300G1 PHOENIX OCM-DPR-13-D-ST PHOENIX OCX-CTN-13D-ST PHOENIX OCX-ETF-13-D-ST-2A1-SM-EXT PHOENIX PPC-5315-S PHOENIX PPC5315 PHOENIX PLC-BSC-24DC/21 NO.#2961105 PHOENIX PLC-BSC-24DC/21 NO.#2961192
