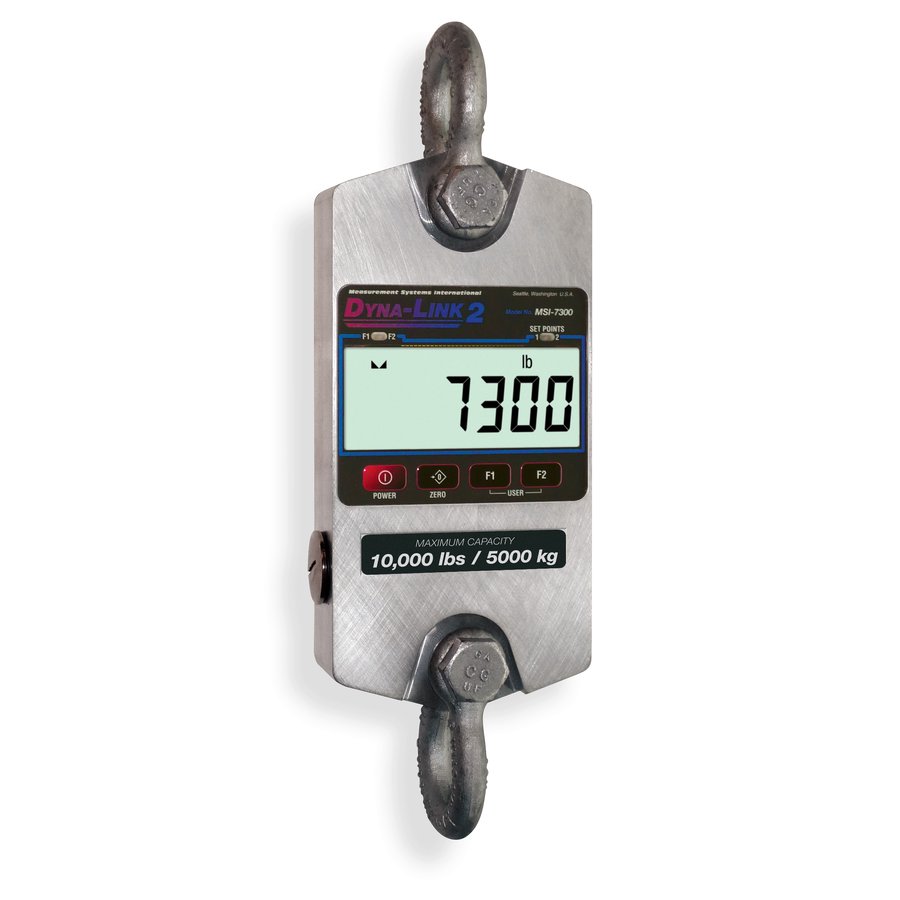

MSI, 7300 Dyna-Link 2 Tension Dynamometer

DescriptionDyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 and 8000HD RF remote display. Long-range viewing is enhanced by a large six-digit, 1 inch (25.4 mm) LCD display with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.Dyna-Link 2 is constructed of high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing to ensure NEMA 4/IP65 rated environmental protection. Peak digital processing with low power consumption provides up to 300 hours of operation from standard common batteries during typical use. The optional MSI-8000 RF remote display provides full-function remote control of Dyna-Link 2 features up to distances of 100 feet (30m). An integrated serial port offers interface capabilities with data collection devices.(Contact MSI for application consultation)Accuracy: 0.1% FS of rated capacity (up to 50 ton)   0.5% FS of rated capacity (50 ton and above)Enclosure: NEMA Type 4, IP65, anodized corrosion-resistant finishMaterial: 2024 aircraft grade aluminum Capacities above 100 K have zinc plated enclosures and 4340 load cell bodiesDesign Overload: 200% Safe/700% Ultimate* (except where noted)Functions: On/Off, Zero, Hi-Speed Peak Hold, Setpoints, Total, Tare, Auto-Off, Motion FilterDisplay: 6 digit, 1.00 in (25.4 mm) LCDDisplayable Units: Pounds, kilograms, kilonewtons, tons, metric tonsLED Annunciators: Function 1, Function 2, Setpoint 1, Setpoint 2LCD Annunciators: Net, Center of Zero, Stable, Battery Test, Peak Hold, TotalPower: Two each C alkaline batteries for capacities up to 10,000 lb two each D alkaline batteries for capacities 25,000 lb–100,000 lbOperating Time: From 150 to 300 hours in typical use depending on unit capacity and battery configuration. Approximately 25 to 30 hours with optional RF modem link installed.Operating Temperature: – 4°F to 140°F (-20°C to 60°C)
